COMMON FEATURES OF THE ANALOGUE I/O CARD FAMILY

• Analogue Input & Output Cards, capable of reading or generating voltage levels from 0 to 18 Volts
• DIN 41612 standard Eurocard connector (48 pins)
• Standard Eurocard width - 4HP (card width = 20.32mm).
• Standard Eurocard format - 3U (pcb board size = 100mm x 160mm. Card size overall = 128mm x 175mm).
• Can be controlled from a PC using Plant Link S.L. PC Interface Cards such as PL-RS232, PL-USB or PL-Parallel Port
• Designed & manufactured by Plant Link S.L.
• Compatible with all cards in the Plant Link Eurocard range.
• Employs Plant Link Test Language for control.
• Drivers available for: LabVIEW, LabWindows/CVI, Visual Basic, Visual C++
• Cards can be extracted from the front of the equipment for inspection or replacement.
• Internal microcontroller to perform card functions, diagnostics and communicate with other cards in the Eurocard system.

PL-AI16

• Analogue Input Card - 16 channels
• 16 analogue input channels
• Voltages on any input line can be measured to an accuracy of = +/- 0.05
• Minimum / maximum voltage range on any input = +0.0 to 18.0 Volts

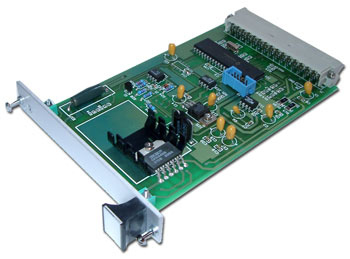

PL-AO01

• Analogue Output Card
• Single analogue output line
• Output voltage range = +0.0 to +18.0 Volts
• maximum output current = 400mA.

PL-AI16-CAN

• Analogue Input Card - 16 channels
• 16 analogue input channels
• Voltages on any input line can be measured to an accuracy of = +/- 0.05
• Minimum / maximum voltage range on any input = +0.0 to 18.0 Volts
• This card can be controlled using any CAN communication device

PL-AO01-CAN

• Analogue Output Card
• Single analogue output line
• Output voltage range = +0.0 to +18.0 Volts
• Maximum output current = 400mA.
• This card can be controlled using any CAN communication device
