PLANT LINK S.L. RELAY MATRIX CARDS

COMMON FEATURES OF THE RELAY CARD FAMILY

  • General purpose relay switch matrixes for multiplexing signals, connecting and disconecting loads, etc
  • Standard Eurocard width - 4HP (card width = 20.32mm).
  • Standard Eurocard format - 3U (pcb board size = 100mm x 160mm. Card size overall = 128mm x 175mm).
  • Can be controlled from a PC using Plant Link S.L. PC Interface Cards such as PL-RS232, PL-USB or PL-Parallel Port
  • Designed & manufactured by Plant Link S.L.
  • Compatible with all cards in the Plant Link Eurocard range.
  • Employs Plant Link Test Language for control.
  • Drivers available for: LabVIEW, LabWindows/CVI, Visual Basic, Visual C++
  • Cards can be extracted from the front of the equipment for inspection or replacement.
  • Internal microcontroller to perform card functions, diagnostics and communicate with other cards in the Eurocard system.

PL-1203A

  • Relay Card - 12 lines to three states
  • Connects 12 lines to two lines, or each line can be open (not connected)
  • Up to 6 Amps per line (pin)
  • Ideal for connecting and disconnecting loads to three different states such as Ground, Power and Not Connected
  • DIN 41612 standard Eurocard connector (48 pins)

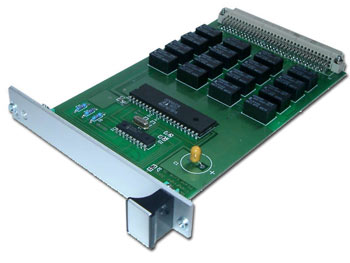

PL-1632A

  • Relay Card - 16 line to 32 line multiplexer
  • Connects 16 lines to 32 lines
  • Up to 1 Amp per line (pin)
  • Ideal for multiplexing analogue signals
  • DIN 41612 standard Eurocard connector (96 pins)

PL-1203A-CAN

  • Relay Card - 12 lines to three states
  • Connects 12 lines to two lines, or each line can be open (not connected)
  • Up to 6 Amps per line (pin)
  • Ideal for connecting and disconnecting loads to three different states such as Ground, Power and Not Connected
  • DIN 41612 standard Eurocard connector (48 pins)
  • This card can be controlled using any CAN communication device

PL-1632A-CAN

  • Relay Card - 16 line to 32 line multiplexer
  • Connects 16 lines to 32 lines
  • Up to 1 Amp per line (pin)
  • Ideal for multiplexing analogue signals
  • DIN 41612 standard Eurocard connector (96 pins)
  • This card can be controlled using any CAN communication device
