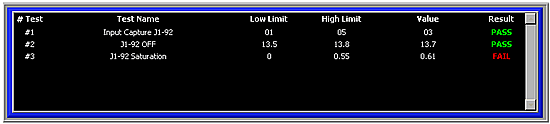

This instruction displays the test results on the system screen. (See
EXAMPLE 1 for the full screen display).
|
Display_Test(#3,J1-92 Saturation,Float0,0,0.55)
|
| #3
|
Test number. It will be displayed
in the results screen under column "#Test" |
| J1-92
Saturation |
Name of this test. It will be displayed
in the results screen of under column "Test
Name" |
|
Float0
|
Variable containing the value to
be compared with the lower and upper limits.
The value contained in this variable will be displayed in the screen
of results under column "Value" |
| 0 |
Lower limit. It will be displayed
in the screen of results under column "Low
Limit" |
| 0.55 |
Upper limit. It will be displayed
in the screen of results under column "High
Limit" |
|
